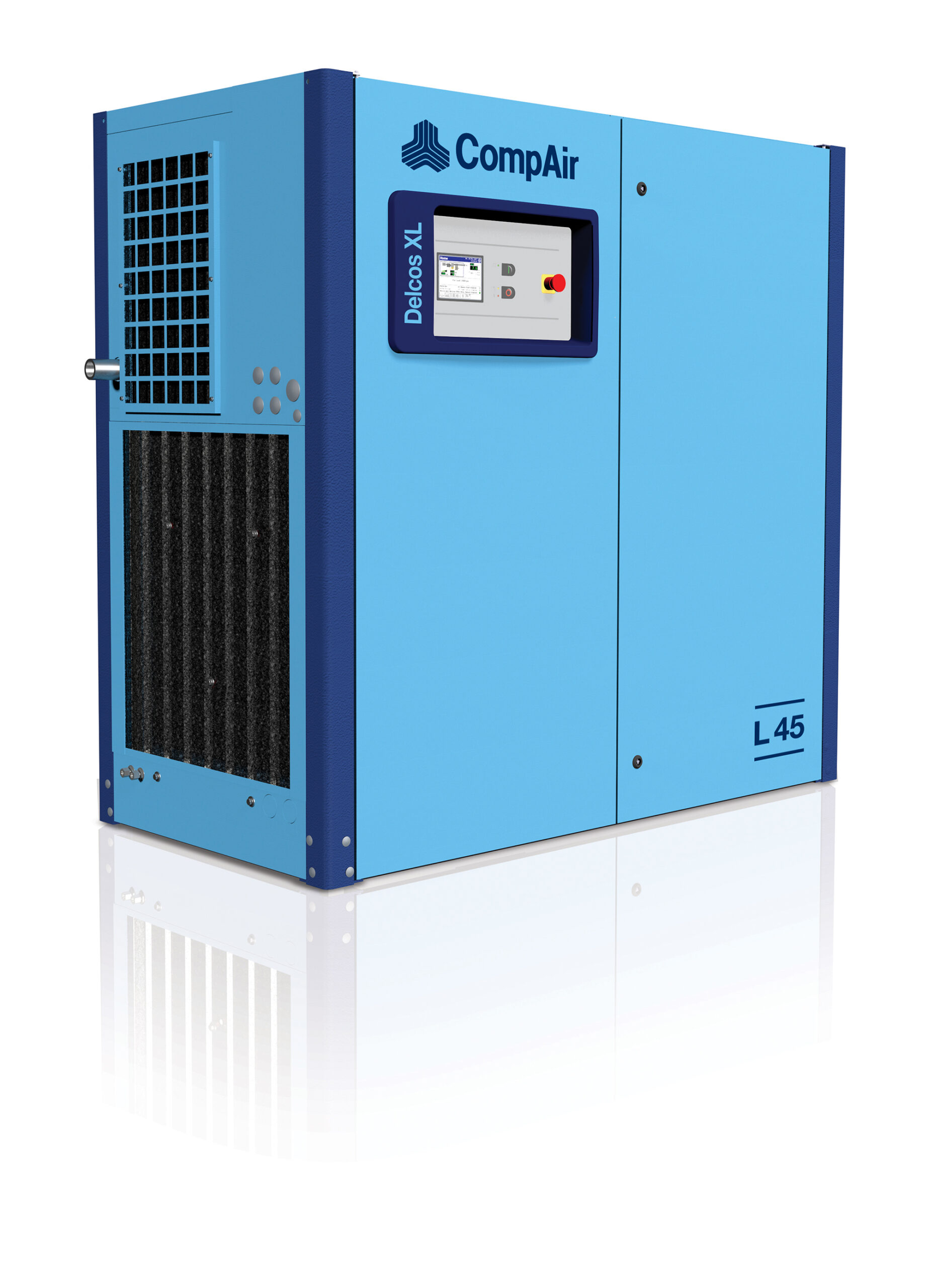

CompAir L45 – 13 – Fixed Speed Rotary Screw Compressor
Phone for Price
Fixed speed rotary screw air compressor. 45kW, 13 bar, 6.11 m³/min FAD.
Description
The CompAir L45 is a fixed speed rotary screw air compressor from CompAir’s industry-leading L-Series range. Engineered for continuous-duty industrial operation, it combines a high-efficiency airend with robust, service-friendly construction to deliver reliable compressed air with low total cost of ownership.
Technical Specifications
| Drive Motor | 45 kW |
| Working Pressure | 13 bar(g) |
| Free Air Delivery (FAD) | 6.11 m³/min |
| Noise Level | 69 dB(A) |
| Weight | 953 kg |
| Dimensions (L×W×H) | 1722 x 920 x 1659 mm |
Key Features
- High-output airend with low rotational speed for reduced wear and energy consumption
- Compact, space-efficient design with small installation footprint
- Delcos XL controller for fully automated operation, monitoring and diagnostics
- Hinged and removable panels for quick access to all service points
- CompAir Assure warranty — up to 10 years on the airend
Supply, Installation & Service from J&J Air Systems
As an experienced compressed air specialist, J&J Air Systems can supply, install and commission your CompAir compressor as part of a complete system solution. We also offer ongoing service, maintenance and spare parts support.
Contact our team: 01494 530291 | [email protected]
Additional information
| Drive Motor (kW) | 45 |
|---|---|
| Working Pressure (bar) | 13 |
| FAD (m³/min) | 6.11 |
| Noise Level dB(A) | 69 |
| Weight (kg) | 953 |
| Dimensions L×W×H (mm) | 1722 x 920 x 1659 |
