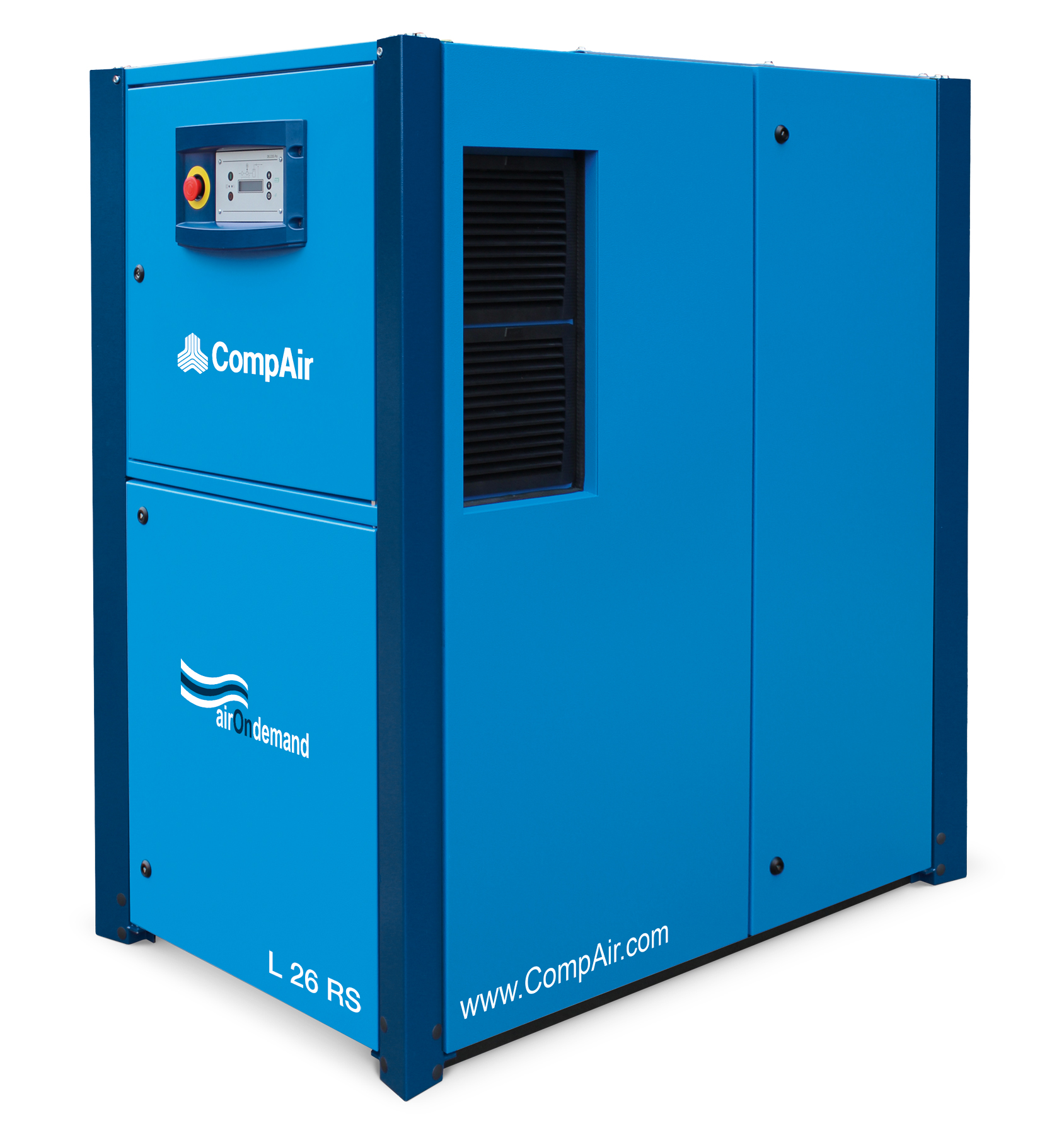

CompAir L26RS – Regulated Speed Rotary Screw Compressor
Phone for Price
Variable speed drive rotary screw compressor. 26kW, 5-13 bar, 1.11 – 4.75 m³/min FAD.
Description
The CompAir L26RS is a variable speed drive (VSD) rotary screw air compressor from CompAir’s proven L-Series range. By continuously adjusting motor speed to match real-time air demand, the regulated speed drive delivers significant energy savings over fixed speed alternatives — typically 30–50% in applications with fluctuating demand profiles.
Technical Specifications
| Drive Motor | 26 kW |
| Working Pressure | 5-13 bar(g) |
| Free Air Delivery (FAD) | 1.11 – 4.75 m³/min |
| Noise Level | 68 dB(A) |
| Weight | 710 kg |
| Dimensions (L×W×H) | 1345 x 880 x 1612 mm |
Key Features
- High-output airend with low rotational speed for reduced wear and energy consumption
- Compact, space-efficient design with small installation footprint
- Delcos XL controller for fully automated operation, monitoring and diagnostics
- Hinged and removable panels for quick access to all service points
- Integrated variable speed drive matches output precisely to demand
- Wide operating pressure range for maximum flexibility
- CompAir Assure warranty — up to 10 years on the airend
Supply, Installation & Service from J&J Air Systems
As an experienced compressed air specialist, J&J Air Systems can supply, install and commission your CompAir compressor as part of a complete system solution. We also offer ongoing service, maintenance and spare parts support.
Contact our team: 01494 530291 | [email protected]
Additional information
| Drive Motor (kW) | 26 |
|---|---|
| Working Pressure (bar) | 5 to 13 |
| FAD (m³/min) | 1.11 – 4.75 |
| Noise Level dB(A) | 68 |
| Weight (kg) | 710 |
| Dimensions L×W×H (mm) | 1345 x 880 x 1612 |
