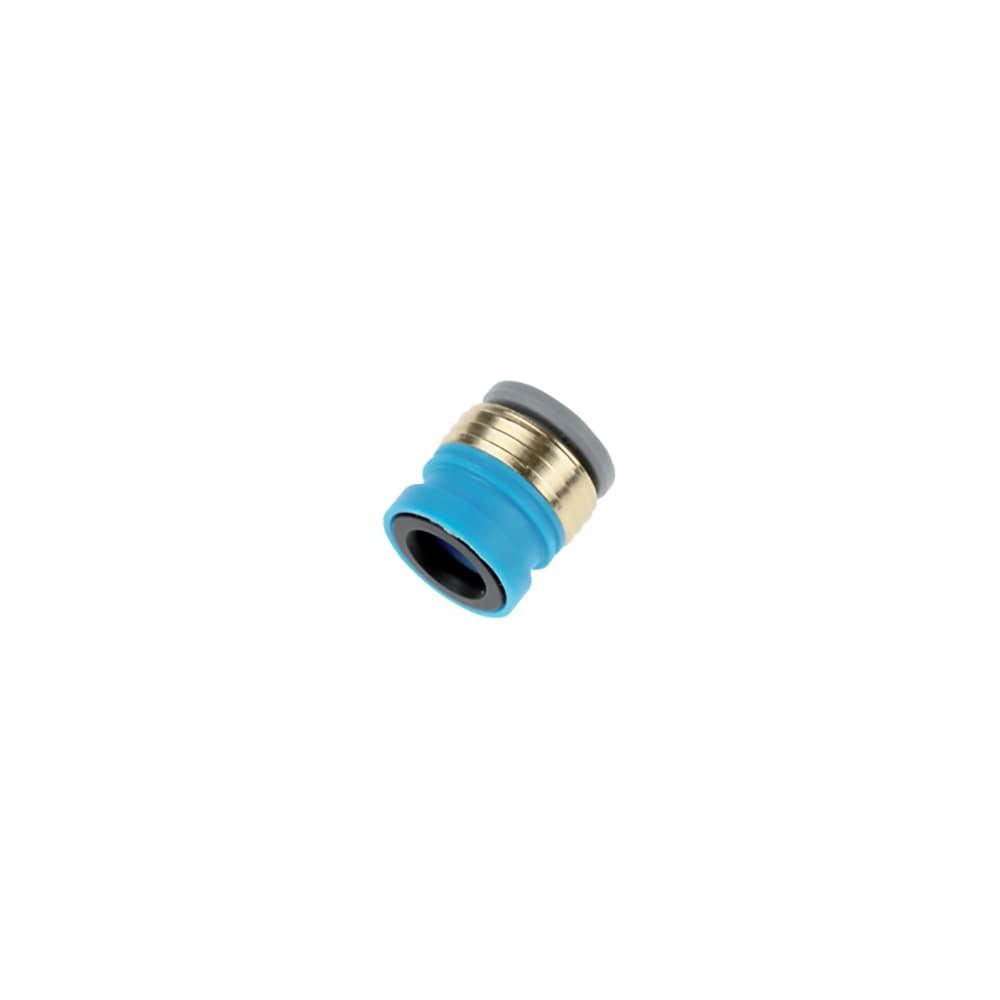

6300 08 00 — Carstick® — Straight — 8mm

Description

Carstick® is a fully integrated one-piece cartridge providing instant connection between the housing and the tubing. It can be inserted in elastic polymers, brass, aluminum non-threaded and non-grooved cavities. Carstick® allows the optimization of your system design and enables the automation of your manufacturing process. This is the right connection solution for energy, space and time saving.

Carstick+ is an extended version of Carstick®. This push-in fitting can be inserted with a low effort. It is suitable for a large range of housing materials including non-elastic polymers. It is removable without damaging its cavity making it reusable.

Carstick® and Carstick+ push-to-connect cartridges enable a quick tube connection and can be used in various low-pressure applications such as liquid and pneumatic applications. Please, look out for the below list of industries Carstick® and Carstick+ can be used for:

Industries:

•Automation
•Industrial
•Transportation
•Food & Beverage
•Thermal Management
•Life Sciences
Features/Benefits:

Carstick®
•Media: Drinking water, beverage, steam, glycol, deionized water, coolant, compressed air, inert gas
•Materials: technical polymer, brass or chemical nickel-plated brass, stainless steel, NBR or EPDM (FKM on demand)

Compressed air applications (NBR)
•Pressure: vacuum to 20 bar
•Temperature: -20°C to +80°C

Liquid applications (EPDM)
•Pressure: vacuum to 16 bar
•Temperature: -20°C to +95°C (+130°C for D4, D6, D8)

Low temperature applications (NBR)
•Pressure: vacuum to 16 bar
•Temperature: -40°C to +80°C

Carstick+
•Media: drinking water, beverage, steam, glycol, deionized water, coolant, compressed air, inert gas
•Materials: technical polymer, stainless steel, EPDM or FKM (NBR on demand)

EPDM version
•Pressure: up to 16 bar
•Temperature: up to +120°C

FKM version
•Pressure: up to 16 bar
•Temperature: up to +140°C

Shared benefits of Carstick and Carstick+
•Productivity Saving – one single component
•Carstick® and Carstick+ are designed to be automatically inserted
•No need to groove your cavity
•Seal pre-assembled and protected
•Ready-to-use packaging – Carstick® and Carstick+ packaging facilitates the automatic assembly process
•Fluid integrity is assured since the only component in contact with the convey fluid is the seal

Carstick+ additional benefits
•Removable – in case of failure during the insertion Carstick+ can be removed without damaging the housing
•Universal cavity – Carstick+ can be inserted in various materials without any specific development
•Space saving – This is the most compact cartridge on the market
Applications:

For Automation & Industrial:
•Packaging manufacturing
•Robotic
•In-plant automotive
•Pneumatics
•Solenoid valves
•Pneumatic cylinders
For Food & Beverage
•Coffee machine
•Water dispenser
•Water treatment

For Thermal Management
•Semiconductor manufacturing
•Power generation (li-ion battery, frequency converter, drive)
•Welding device/robot
•Data center
•Supercomputer
•Lithography machinery

For Transportation:
•Pneumatic suspension
•Auxiliary pneumatic system for cab and seat

For Life Sciences:
•Medical respiratory device
•Anaesthesia machine
• Dental chair
Regulations:

Carstick® and Carstick+ ranges comply with industrial and food regulations:

Industrial regulations
•ISO 14743
•PED
•RoHS

Food regulations
•1935/2004
•FDA: 21CFR
•NSF 51
•WRAS
•ACS
•DM 174
•KTW / UBA
