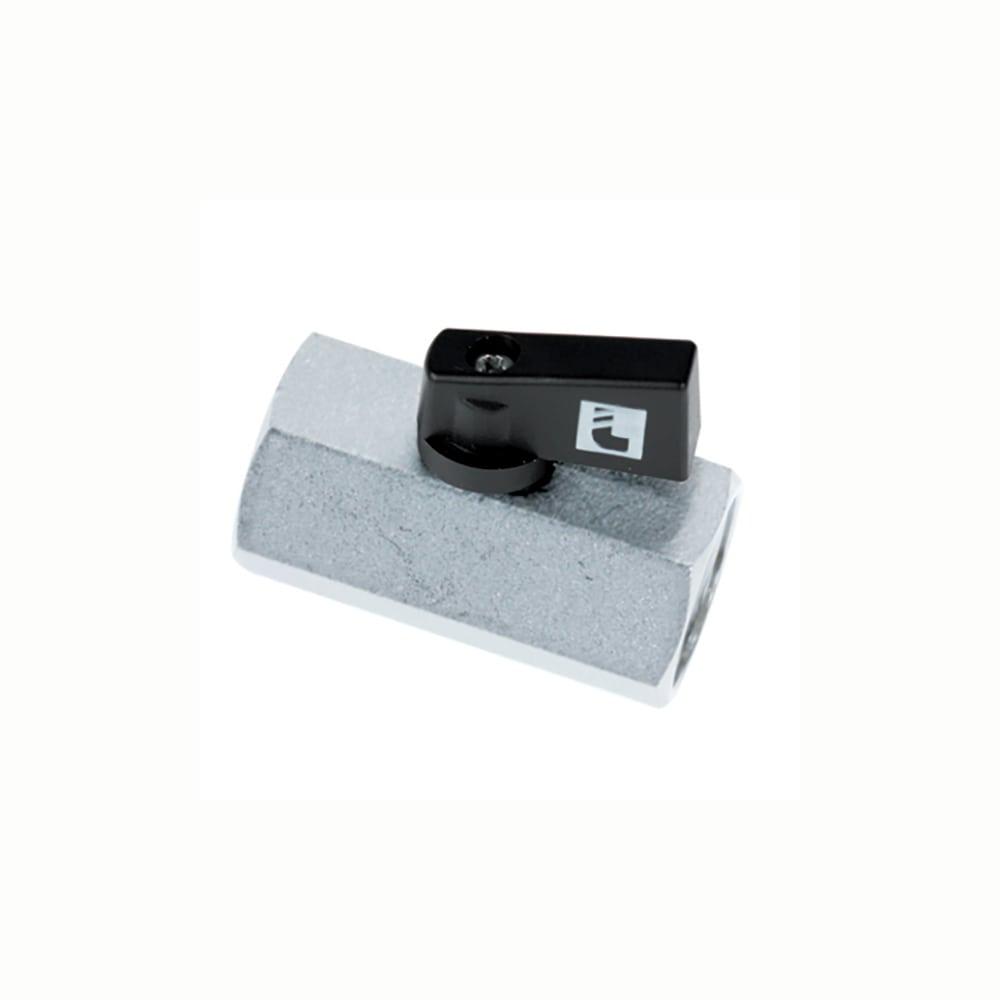

4992 10 21 — Ball Valves Standard Series — G1/2, Inline, 10mm
4992 10 21 — This range of valves with fluoropolymer seals, available in compact, standard and lockable series, covers many industrial applications for which the fluids conveyed and working temperatures require this seal material.
Description
This range of valves with fluoropolymer seals, available in compact, standard and lockable series, covers many industrial applications for which the fluids conveyed and working temperatures require this seal material.
Features/Benefits:
– Optimised Installation
• Full fluid flow
• Long or butterfly lever
• Corrosion resistance
• A lockable version for operational safety
• Good value/performance ratio
– Wide Compatibility
• Numerous compatible fluids
• Can be used for low and medium pressure applications
• Surface treatment for corrosion protection
Markets:
• Machine Tools
• Agricultural Machinery
• Wearing Apparel
• Plumbing
• Air Conditioning
• Heating
Applications:
• Allow/Stop Industrial Fluids Circulation on Industrial Circuits
• Suitable for Low and High Temperatures
Technologies:
• Industrial valves
• Lockable valve
• Standard valve
• Compact valve
• Corrosion resistance
• Ball valve manufacturer
Technical Characteristics:
• Fluids: Compressed air, gas, water, water vapour, oil and all fluids compatible with the component materials
• Materials: steel with plastic sleeve, technical polymer, treated zamak, treated steel, PTFE, galvanised steel, nickel-plated brass, nickel-plated or chromium-plated shot-blasted brass, nickel-plated or hard chromium-plated brass, FPM, silicone free
• Pressure:
Standard and Lockable Series: 0 to 40 bar
Compact series: 0 to 35 bar
• Temperature:
Standard and Lockable Series: -20°C to +130°C
Compact series: -10°C to +90°C
Regulations:
• DI: 97/23/EC (module PED A – EC diameters greater than 25 mm)
• DI: Machinery Directive 2006/42/EC
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)
• DI: 89/392/EC
Product Types:
• 2/2 Standard In-Line Ball Valve, Female BSPP Thread
• 2/2 Standard Compact In-Line Ball Valve, Male/Female BSPP Thread
• 2/2 Standard Compact In-Line Ball Valve, Female BSPP Thread
• 2/2 In-Line Lockable Ball Valve, Female BSPP Thread
• 2/2 In-Line Lockable Vented Ball Valve, Female BSPP Thread
Additional information
| Weight | 0.148 kg |
|---|---|
| Ball Material | Chrome-Plated Brass |
| Body Material | Chrome-Plated Brass |
| Configuration | 2/2 |
| Connection 1 Thread Size (metric) | G1/2 |
| Connection Size | G1/2 |
| Connection Type | BSPP |
| Diameter Nominal (DN) | 10.0 |
| Function | 2-Way |
| Handle | TECHNICAL POLYMER special Handle |
| O-Ring Material | PTFE |
| Operation Type | Lever-operated |
| Orifice Size | 10 mm |
| Product Series | Standard Series |
| Product Style | Female Compact Ball Valve |
| Product Type | Ball Valves |
| Seal Material | PTFE |
| Shape | Inline |
| Stem Material | Brass |
| Actuation Type | Manual |
| Application | Heating | Safety | Fluid Control | Agricultural Machinery | Process Control | Air Conditioning | Textile | Pneumatics | Plumbing |
| Brand | Legris |
| Division | Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division |
| For Fluid Type | Oil | Water | All Fluids Compatible with the Component Materials | Gases | Water Vapour |
| Handle Type | Short Lever (Polymer) | Black |
| Industry | Industrial Manufacturing Equipment |
| Maximum Operating Pressure | 4 MPa | 580 psi | 40 bar |
| Maximum Operating Temperature | 90 °C | 194 °F |
| Minimum Operating Temperature | 14 °F | -10 °C |
| Mounting Type | Inline |
| Quantity per Box | 10 |
| Region of Origin | Italy |
| Seat Material | PTFE |
| Specifications Met | DI: 2006/42/EC (Machinery Directive) | DI: 89/392/EC | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | RG: 1907/2006 (REACH) | DI: 2002/95/EC (RoHS) |
| Technology | Pneumatics | Fluid & Gas Handling | Process Control |
| Weight | 0.148 kg | 0.3256 lb |
